Applicable Product:

• OrgPublisher

Applicable Release:

• V21

Summary:

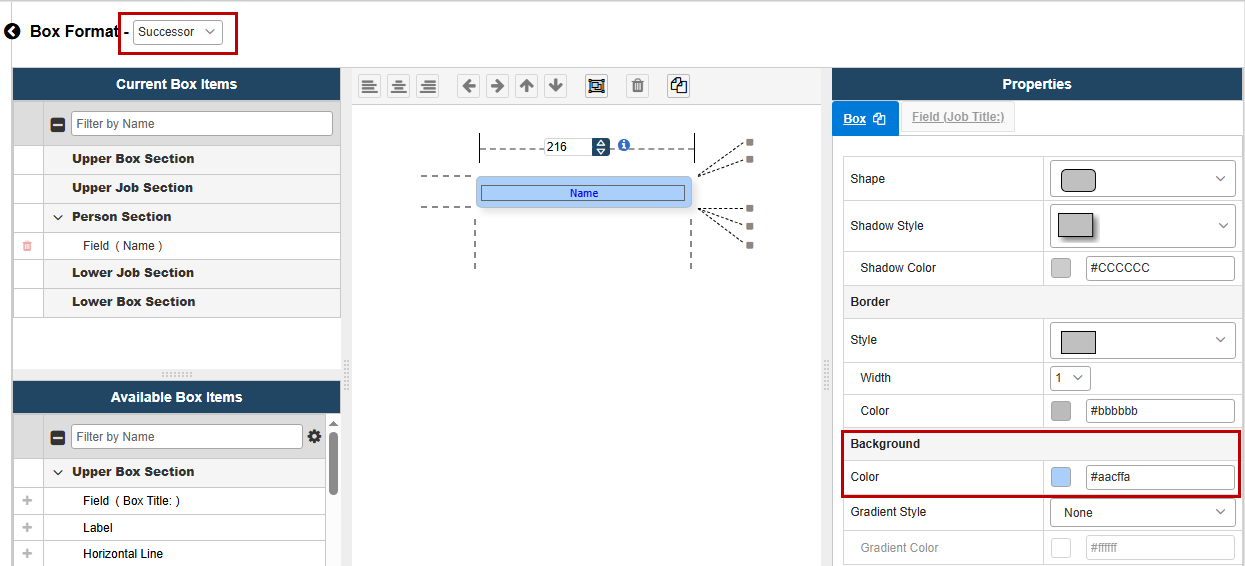

Scenario:  In the box editor, I've changed the box background for the Successor position type to blue:

However, when I view the chart, the successors have a white background (both Susanand Edward are successor candidates for Russell):

Resolution:
In order to have your Successor's box background colour be different, you have to add a background area object and use it as the background colour.  Here's how:

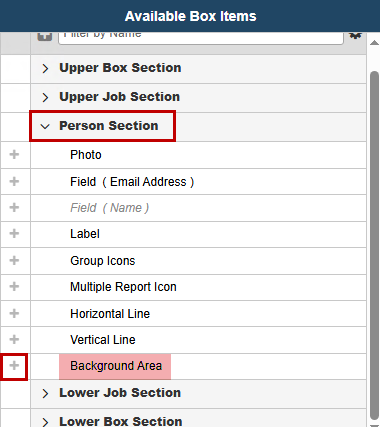

1. In the box editor's "Available Box Items" under the Person Section, click the "+" sign for the "Background Area" object:

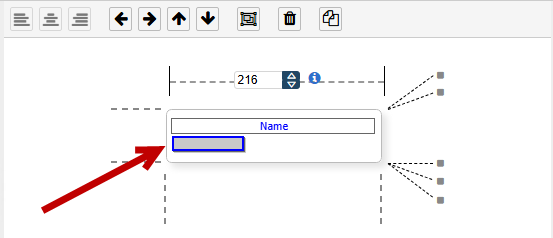

2. You should now see the object in the box editor:


3. Move the object so that it is behind the "Name" field, and then resize it so it looks like this:

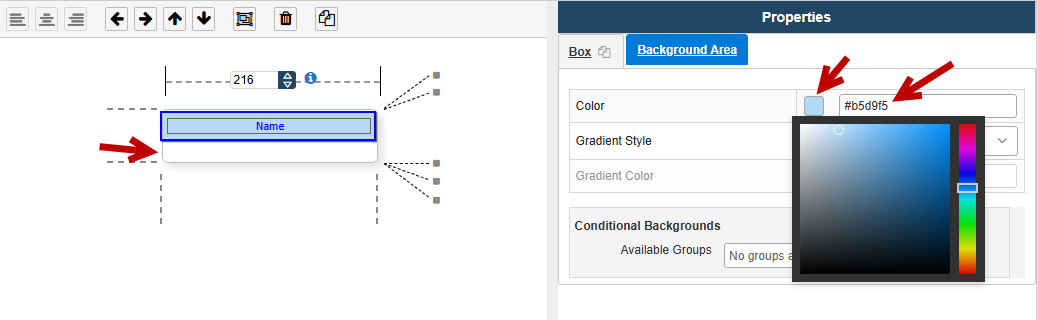

4. Next, change the colour of the object by using the colour picker or entering a hex value - in this example, I've chosen a light blue:

   Note that that adding the background object introduced extra spacing.

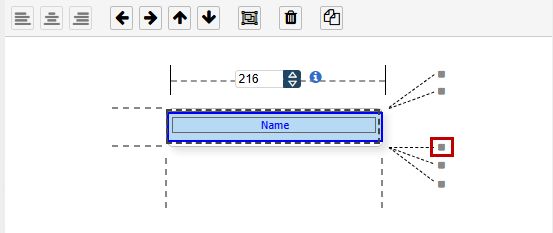

5. To remove that space, drag up on the bottom sizing handle for the Person Section:


6. Click the "Apply" button and re-publish the chart and you should see the formatting change:




   Keywords: box editor, successor, background object


   Created : Alvin Ee
   Reviewed: 20 February 2026
